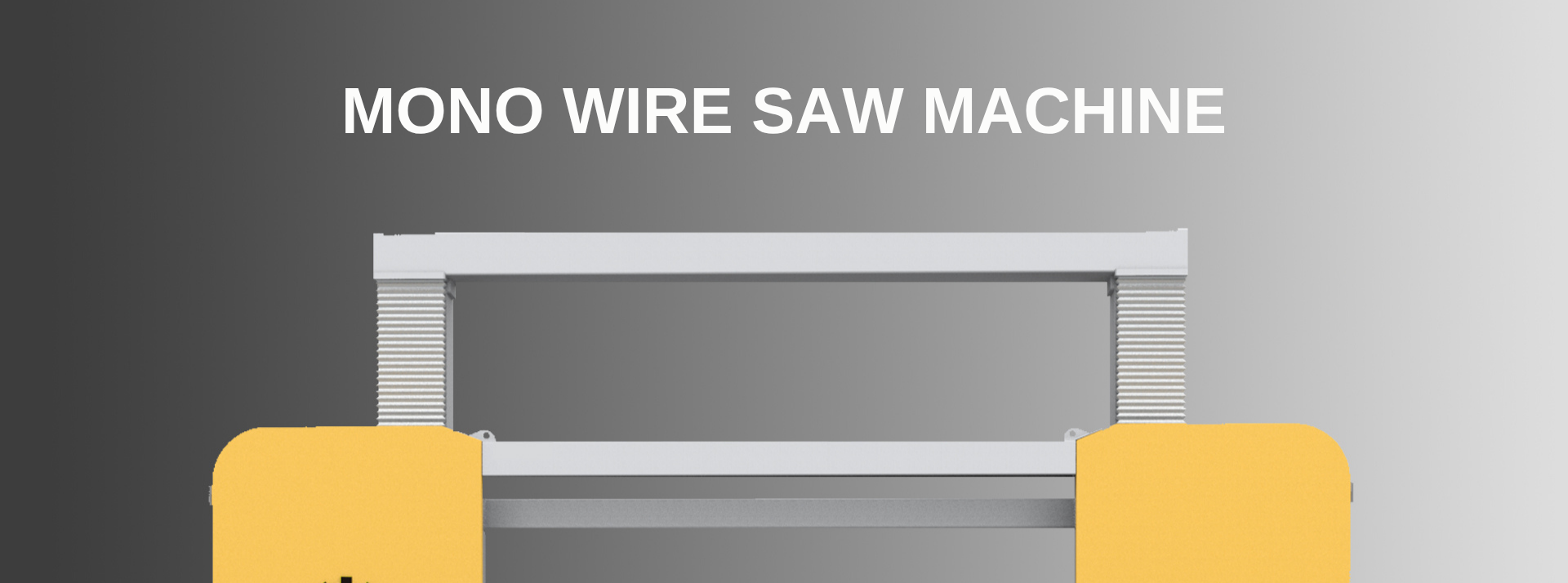

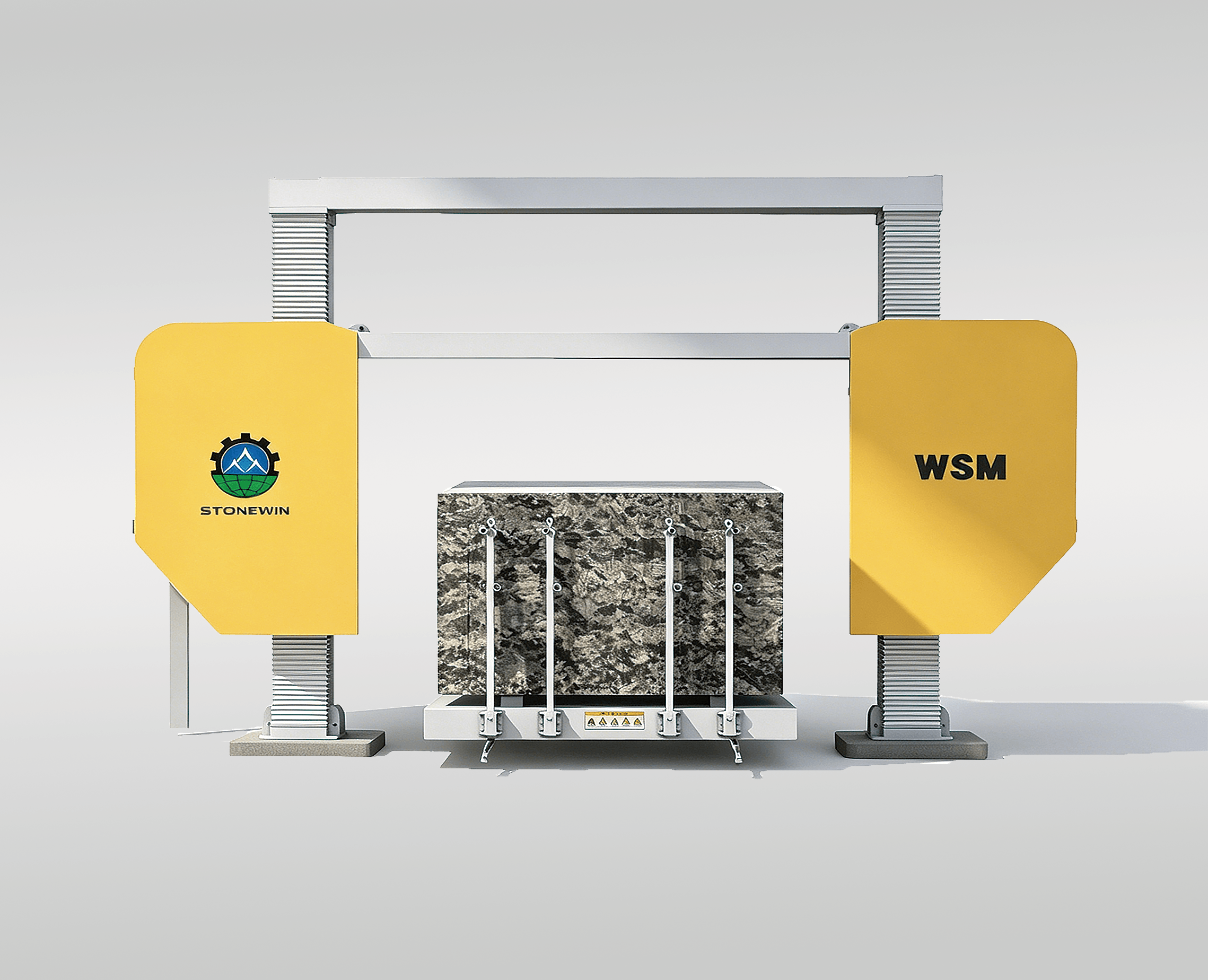

MONO WIRE SAW MACHINE

• High Cutting Efficiency: Stable cutting for all stone hardness levels. • Ultra-Narrow Kerf: Reduced material waste, higher yield rate. • Precision Machining Accuracy: Straight, vertical cuts with zero deviation. • Irregular Block Compatibility: Directly processes irregular blocks and leftover materials.

GET A QUOTE >

download

Description

High Cutting Efficiency

Stable cutting for all stone hardness levels.

Ultra-Narrow Kerf

Reduced material waste, higher yield rate.

Precision Machining Accuracy

Straight, vertical cuts with zero deviation.

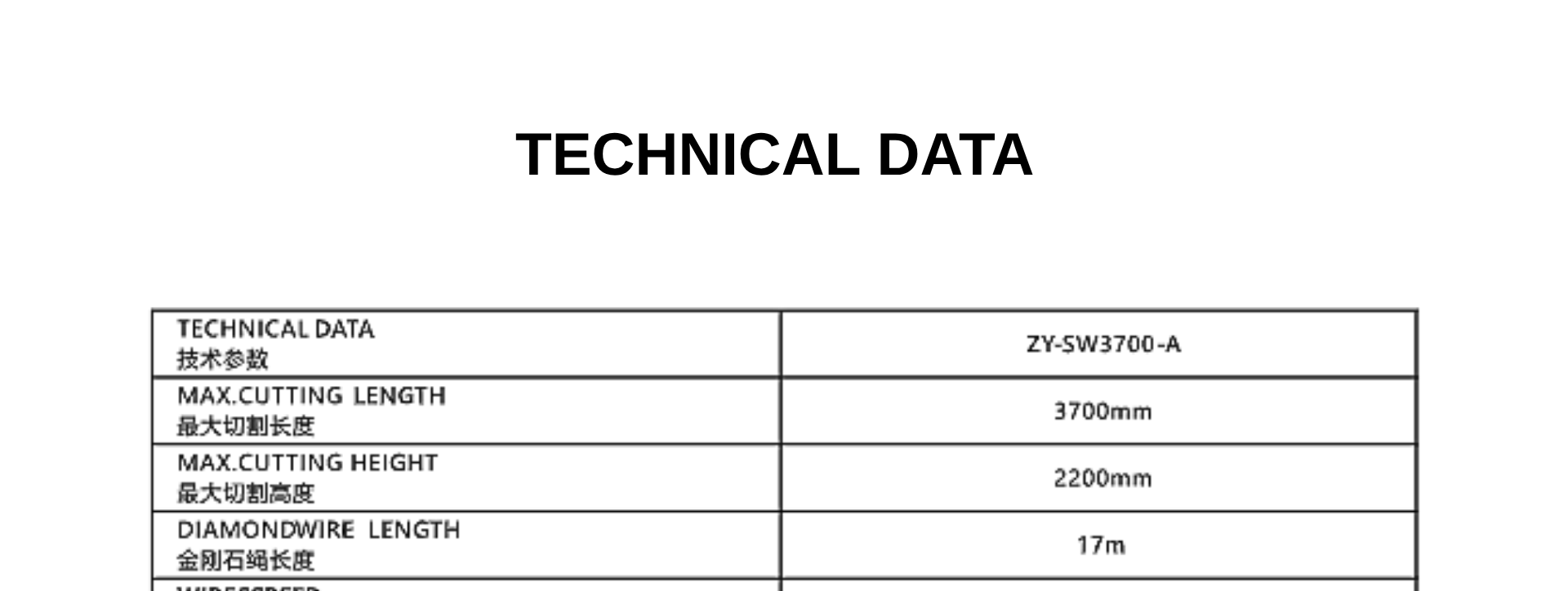

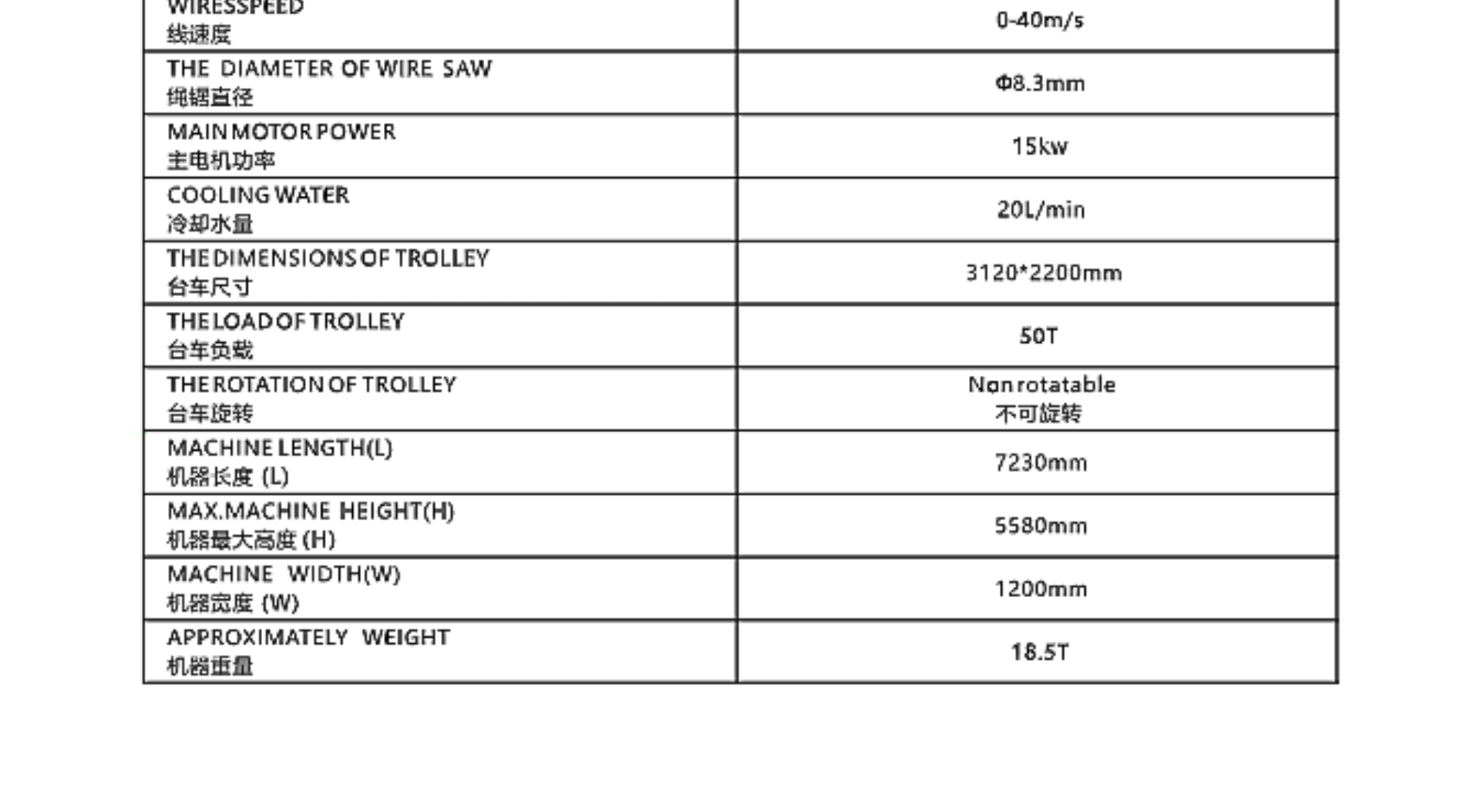

TECHNICAL DATA

TECHNICAL DATA	ZY-SW3700-A
MAX.CUTTING LENGTH	3700mm
MAX.CUTTING HEIGHT	2200mm
DIAMOND WIRE LENGTH	17m
WIRE SPEED	0-40m/s
THE DIAMETER OF WIRE SAW	Φ8.3mm
MAIN MOTOR POWER	15kw
COOLING WATER	20L/min
THE DIMENSIONS OF TROLLEY	3120*2200mm
THE LOAD OF TROLLEY	50T
THE ROTATION OF TROLLEY	Non rotatable
MACHINE LENGTH(L)	7230mm
MAX.MACHINE HEIGHT(H)	5580mm
MACHINE WIDTH(W)	1200mm
APPROXIMATELY WEIGHT	18.5T
