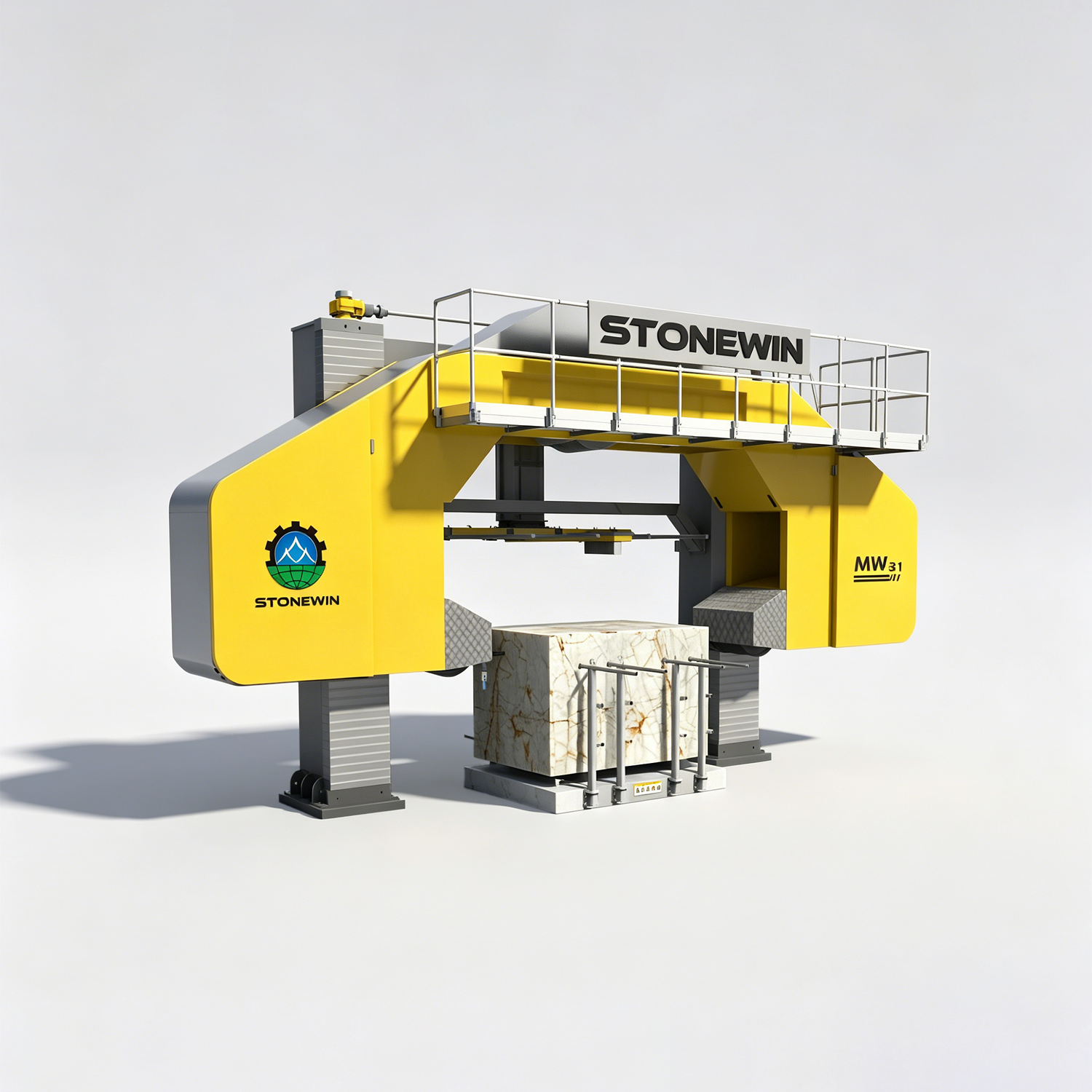

1. Symmetric triangular frame ensures stability of the fuselage
2. Multi rope batch cutting with high processing efficiency
3. Adopting energy-saving servo motors with low operating power consumption
4. High precision linear slider for more precise lifting control
5. A technical solution that simplifies complexity and facilitates later maintenance
6. Self developed dovetail groove shaped rubber strip, resistant to friction and long service life

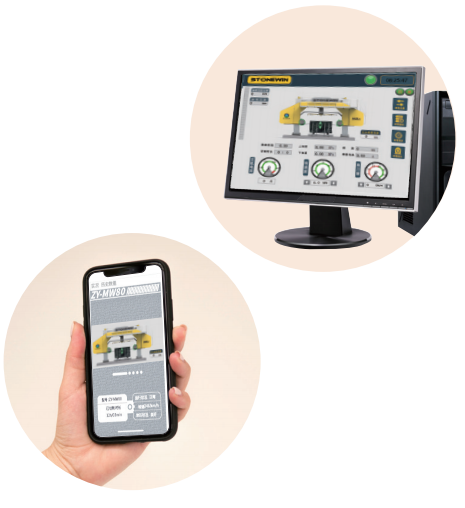

7. Visual electrical control system, easy to learn and operate

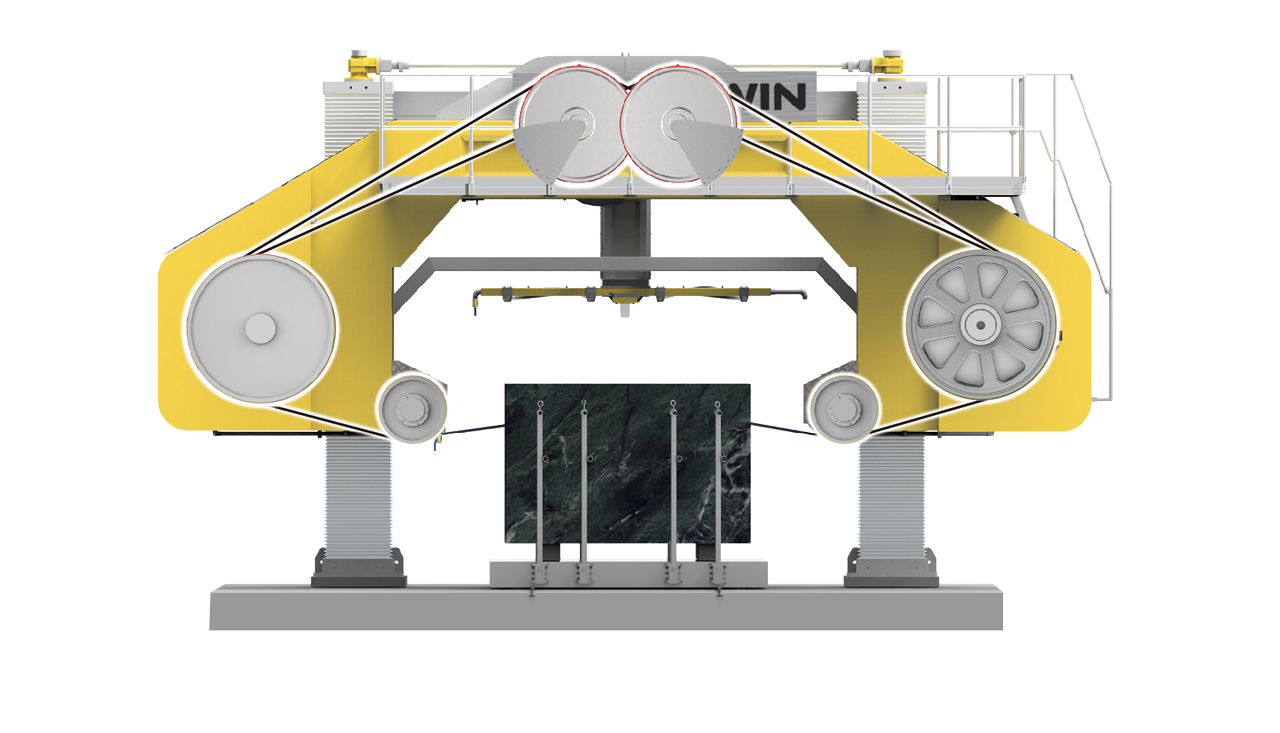

8. The automatic sprinkler and cleaning system keeps the wheel system clean
9. Automatic lubrication system, making the equipment as new as new after long-term use
| TECHNICAL DATA | ZY-MW5 | ZY-MW10 | ZY-MW16 | ZY-MW20 | ZY-MW36 |
|---|---|---|---|---|---|
| MAX.CUTTING LENGTH | 3500mm | 3500mm | 3500mm | 3500mm | 3500mm |
| MAX.CUTTING HEIGHT | 2200mm | 2200mm | 2200mm | 2200mm | 2200mm |
| 20mm THICKNESS SLAB QUANTITY | 4 | 9 | 15 | 19 | 35 |
| 30mm THICKNESS SLAB QUANTITY | 3 | 5 | 10 | 14 | 27 |
| DIAMOND WIRE LENGTH | 20000mm | 20000mm | 20000mm | 20000mm | 20000mm |
| WIRES SPEED | 0-35m/s | 0-35m/s | 0-35m/s | 0-35m/s | 0-35m/s |
| MAIN MOTOR POWER | 37kw | 55kw | 75kw | 95kw | 132kw |
| MACHINE LENGTH (L) | 9620mm | 9620mm | 9620mm | 9620mm | 9620mm |
| MACHINE HEIGHT(H) | 6710mm | 6710mm | 6710mm | 6710mm | 6710mm |
| MACHINE WIDTH(W) | 2080mm | 2230mm | 3040mm | 3185mm | 3640mm |
| APPROXIMATEL NET WEIGHT | 22T | 24T | 26T | 28T | 33T |

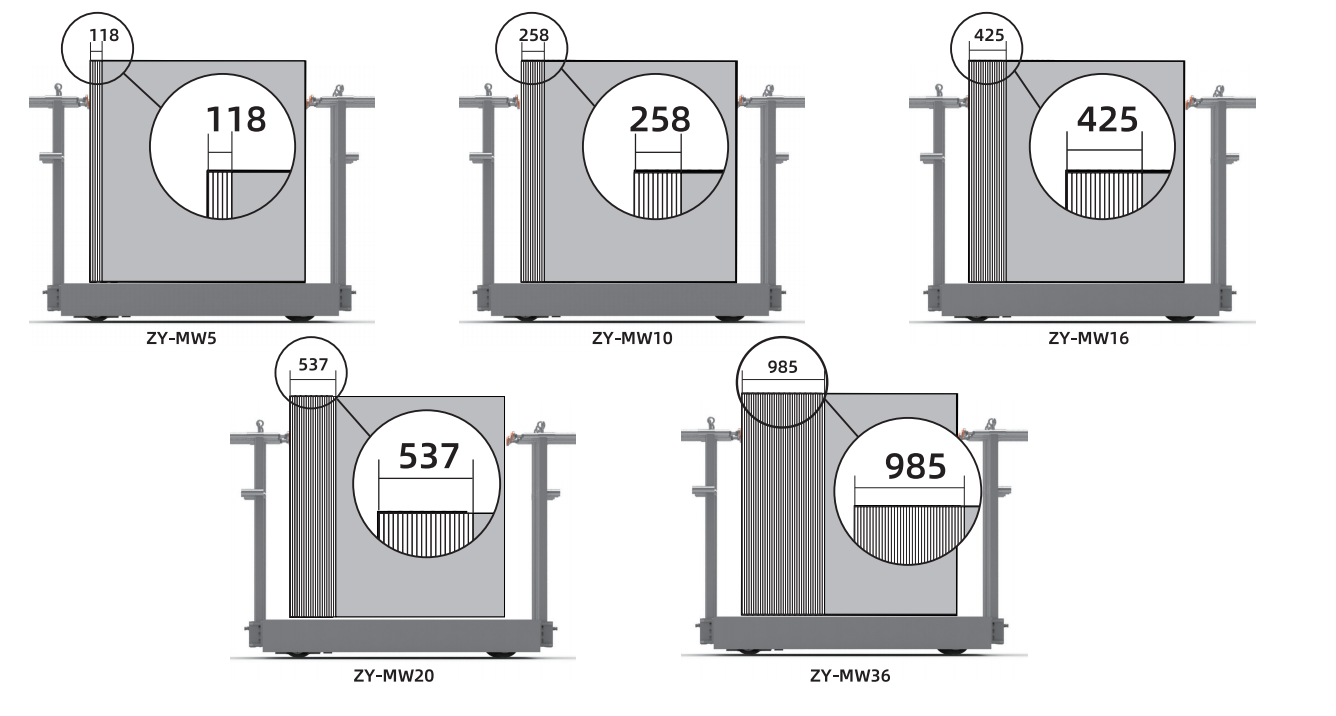

SCHEMATIC DIAGRAM OF THE MAXIMUM EJECTION WIDTH

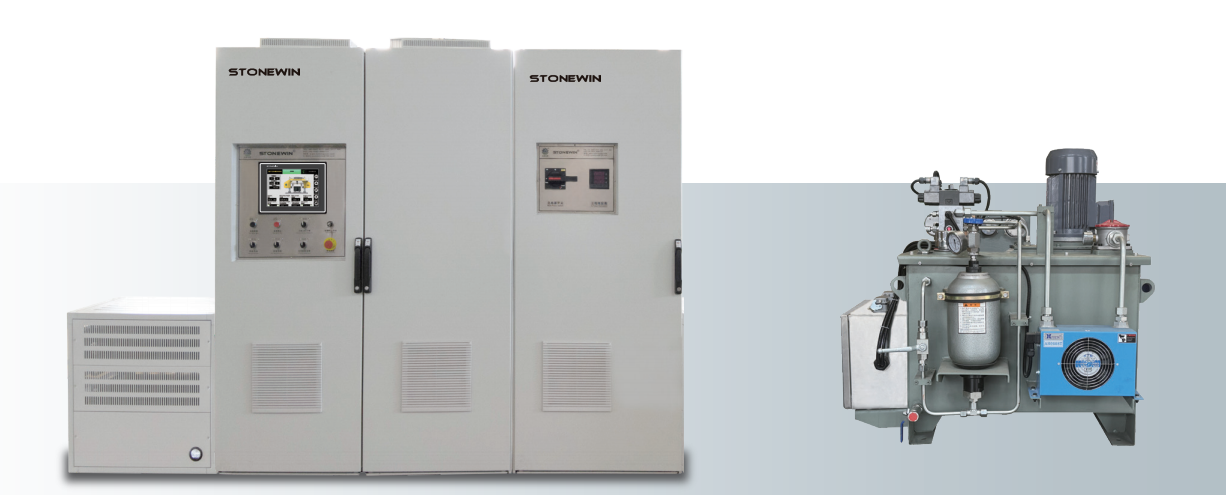

It is equipped with a hydraulic sensing device, which provides monitoring and adjustment of pressure values for independent tensioning systems, so that the multi wire saw can achieve an ideal operating state.
SEARCH

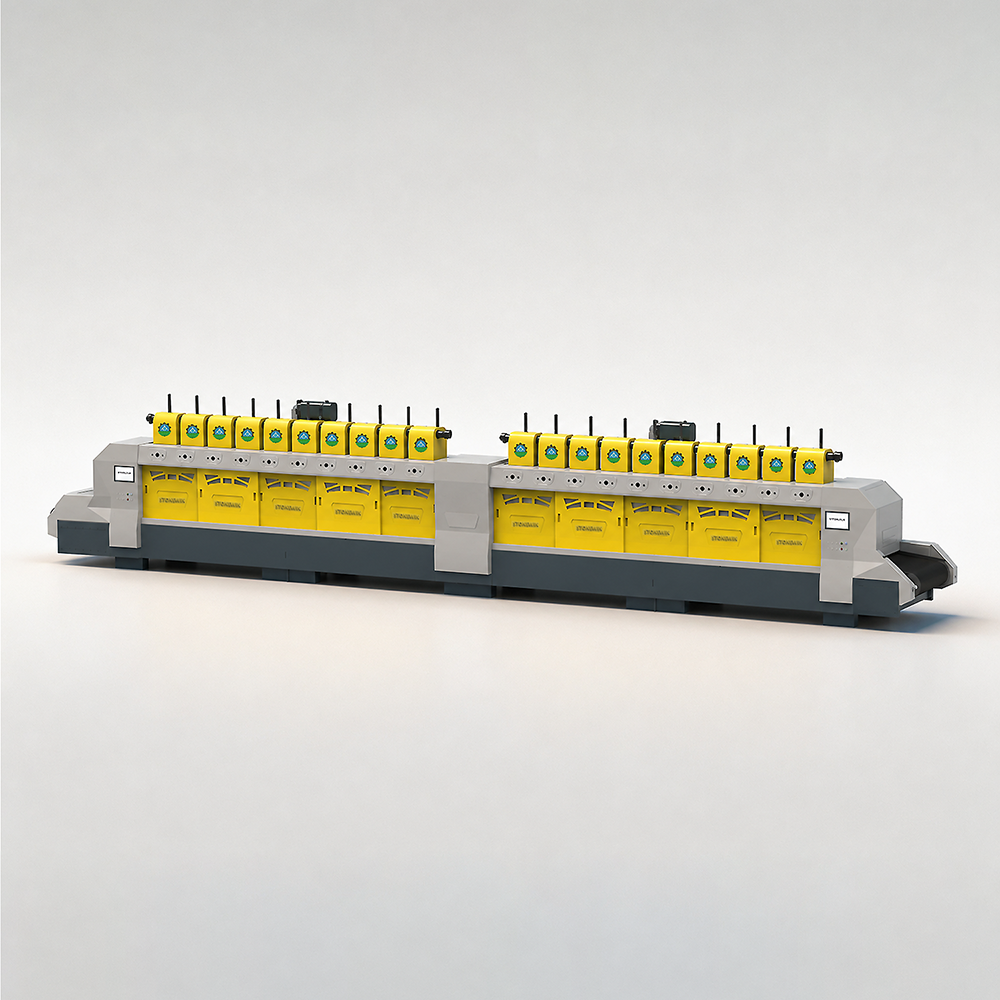

Stonewin offers full stone slab processing solutions: diamond wire saw, multi wire saw, resin line and slab polishing machine. From block cutting, slab resining to polishing for granite & marble.
